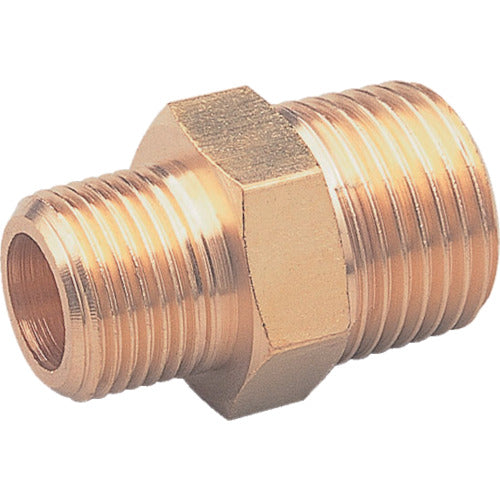

ASOH Different Diameter Hexagonal Nipple PT3/4 x PT1 NE-1068 1 pc

Catalog number: NE-1068 Features: ●Used for piping with different internal thread sizes. Applications: ●Fittings for threads. Specifications: ●Connection port size D: R1 ●Hexagonal side size (mm): 35 ●Maximum operating pressure (MPa): 6.90 ●Connection port size D1: R3/4 ●Connection port size D2: R1 ●Type: Hexagonal nipple with different diameters ●Operating fluid: Water, air, oil ●Thread: R3/4 x R1 ●Dimensions (mm) B: 35 ●Dimensions (mm) A: 50 ●Fluid temperature (℃): -50 to 150℃ ●Operating pressure: 6.90MPa Material/Finish: ●Brass (C3604)
