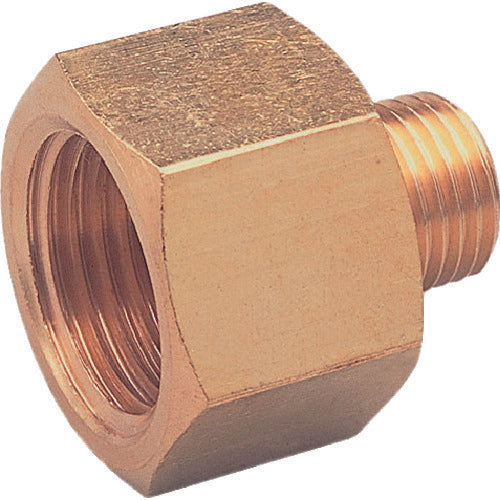

ASOH Different Diameter Inside and Outside Socket PT3/4 Outside x PT3/8 Inside (RoHS) NF-1063R 1 pc

Catalogue number: NF-1063R Features: ●For use with piping with different internal and external thread sizes. ●RoHS compliant. Applications: ●Fittings for threads. ●For piping with different internal and external thread sizes. Specifications: ●Connection port size D: Rc3/8 ●Hexagonal face size (mm): 28 ●Connection port size D1: R3/4 ●Connection port size D2: Rc3/8 ●Type: Different diameter internal and external socket ●Fluids used: Water, air, oil, and other materials that have no adverse effects. ●Dimensions (mm) B: 28 ●Dimensions (mm) A: 31 ●Fluids used: Water, air, oil ●Fluid temperature: -50 to 150°C ●Operating pressure: 6.90MPa Material/Finish: ●Brass (C3604) Note: ●Freight charges will be charged separately for direct shipping.
