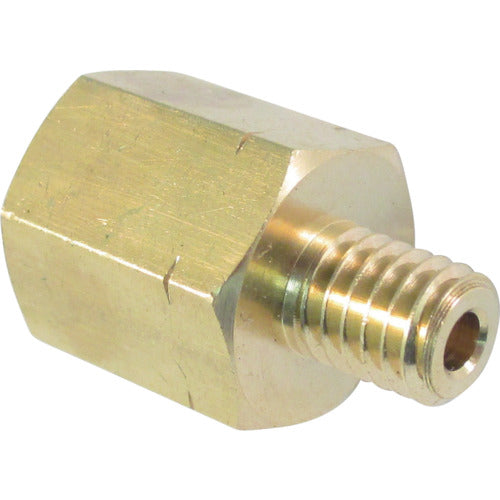

ASOH Brass conversion socket, external M6 (P1.0) x internal PT1/8 NF-3611R, 1 piece

Catalog number: NF-3611R Features: ●For converting external M6 (1.0) threads to internal PT1/8 threads ●RoHS compliant Uses: ●For converting external M6 (1.0) threads to internal PT1/8 threads ●For removing grease nipples (lubrication fittings) and piping hydraulic hoses Specifications: ●Connection diameter D: PT1/8 ●Hexagonal face size (mm): 12 ●Maximum operating pressure (MPa): 6.90 ●Connection diameter D1: M6 x P1.0 ●Connection diameter D2: Rc1/8 ●Type: Internal and external sockets ●Fluids used: Water, air, oil, and other materials that have no adverse effects. ●Fluid temperature (℃): -50 to 150℃ ●Operating pressure: 6.90MPa Material/Finish: ●Brass (C3604 cadmium 75ppm or less)
