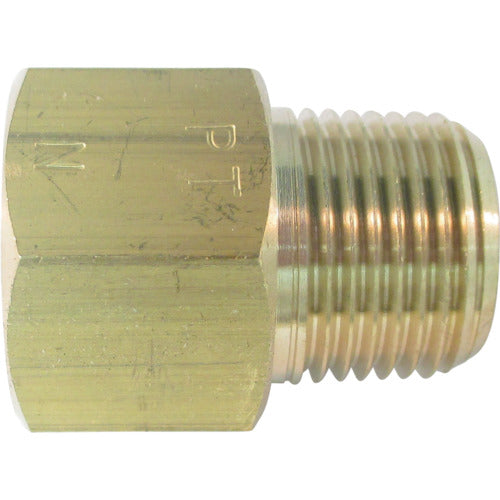

ASOH Brass conversion socket, external PT1/2 x internal NPT1/2, NF-3044R, 1 piece

Catalog number: NF-3044R Features: ●For converting R (PT) external threads to NPT internal threads (American threads) ●RoHS compliant Uses: ●For converting R (PT) external threads to NPT internal threads (American threads) Specifications: ●Connection diameter D: NPT1/2 ●Hexagonal face size (mm): 26 ●Maximum operating pressure (MPa): 6.90 ●Connection diameter D1: R1/2 ●Connection diameter D2: NPT1/2 ●Type: Internal and external socket ●Usable fluids: Water, air, oil, and other materials that have no adverse effects. ●Fluid temperature: -50 to 150°C ●Usable pressure: 6.90MPa ●Usable fluids: Water, air, oil, and other materials that have no adverse effects. Material/Finish: ●Brass (C3604 cadmium 75ppm or less)
