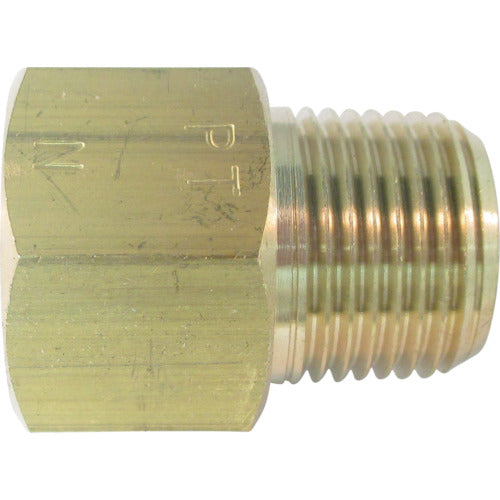

ASOH Brass conversion socket, external PT3/8 x internal NPT3/8, NF-3033R, 1 piece

Catalog number: NF-3033R Features: ●For converting R (PT) external threads to NPT internal threads (American threads) ●RoHS compliant Uses: ●For converting R (PT) external threads to NPT internal threads (American threads) Specifications: ●Connection diameter D: NPT3/8 ●Hexagonal face size (mm): 21 ●Maximum operating pressure (MPa): 6.90 ●Connection diameter D1: R3/8 ●Connection diameter D2: NPT3/8 ●Type: Internal and external socket ●Usable fluids: Water, air, oil, and other materials that have no adverse effects. ●Fluid temperature: -50 to 150°C ●Usable pressure: 6.90MPa ●Usable fluids: Water, air, oil, and other materials that have no adverse effects. Material/Finish: ●Brass (C3604 cadmium 75ppm or less)
