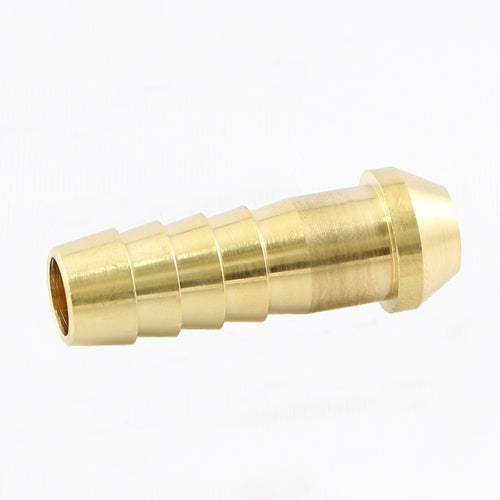

ASOH L-type hose joint PT3/8 x Φ10.5 HL-1310 1 piece

ASOH L-type hose joint PT3/8 x Φ10.5 HL-1310 1 piece

JAN：4562125864418 　
ASOH fittings Fluid Couplings and Tubes Pipe Fittings Pneumatic Equipment
¥1,188
¥1,188
Sale Sold out
Shipping calculated at checkout.
Catalog number: HL-1310 Features: ● Used to connect hoses and screws. Applications: ● Hose fittings. Specifications: ● Connection diameter D: R3/8 ● Maximum operating pressure (MPa): 3.45 ● Connection diameter (bamboo shoot outer diameter) (mm): 10.5 ● Connection diameter: R3/8 ● Hexagonal opposite sides (mm) nut: 19 ● Type: L-type hose joint ● Fluid used: water, air, oil ● Fluid temperature: -50 to 150°C ● Operating pressure: 3.45MPa Material/Finish: ● Brass (Body: C3771, Bamboo shoot/Nut: C3604)
