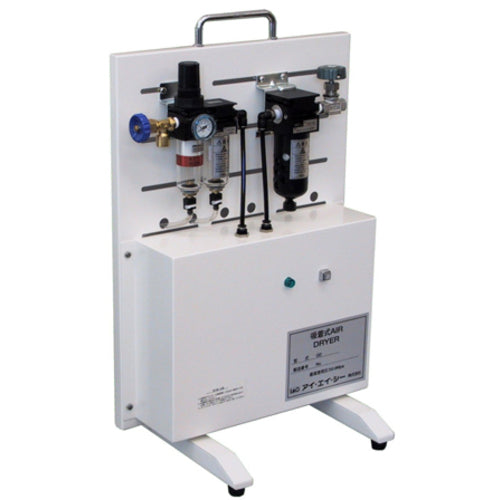

AS Ultra-low dew point air dryer QD10-50 1-8698-01 1 unit

Catalog number: 1-8698-01 Features: ●Can be used with small compressors (0.75KW or less). ●Suitable for preventing condensation. ●Used as a substitute for nitrogen gas. ●Self-regenerating system allows for continuous use. ●No need to replace desiccant, maintenance-free. ●Made in Japan for your peace of mind. Specifications: ● Power supply (V): AC100 50/60Hz ● Inlet air temperature (℃): 10-50 ● Inlet air pressure (MPa): 0.4-0.9 ● Connection diameter: Rc1/4 (female thread) ● Width (mm): 380 ● Depth (mm): 300 ● Height (mm): 595 ● Power consumption (W): 1 ● Filtration accuracy (μm): 0.01 ● Power consumption (W): 1 ● Atmospheric pressure dew point (℃): -60 ● Outlet flow rate (L/min): 10 ● Regeneration flow rate (L/min): 3 ● Dew point measurement certificate included ● Connection diameter: Inlet/φ6 one-touch fitting, outlet/φ6 tightening fitting (when removed, Rc1/4 (female thread))
