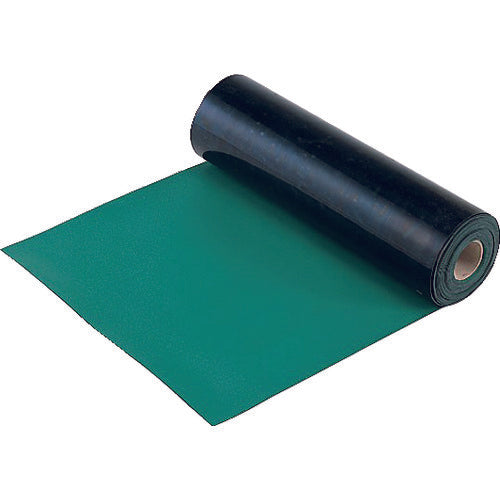

AS ESD sheet CCBP1209GL 1-4255-04 1 roll

Catalog number: 1-4255-04 Features: ● Excellent static electricity countermeasures with two layers of static electricity diffusion rubber and conductive rubber. ● Resistant to oil, grease, and general solvents. ● Can reduce 20,000 volts to a harmless level in seconds. Applications: ● Places where static electricity problems are expected. Specifications: ● Color: Gray ● Width (mm): 900 ● Thickness (mm): 2 ● Length (m): 10 ● Surface resistance value (front): 10 [8-10th power] Ω ● Surface resistance value (back): 10 [4-5th power] Ω Material/Finish: ● Surface: Static electricity diffusion nitrile rubber ● Back: Conductive nitrile rubber Note: ● Earth wire sold separately.
