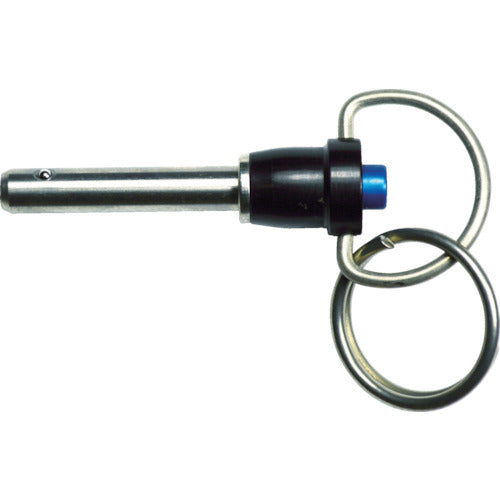

Avibank BALL-LOK SINGLE ACTING PINS R Handle for t1 inch BLC5R10S 6 pieces

Catalog number: BLC5R10S Features: ● A single active lock pin with a ring-shaped handle. Applications: ● For aerospace equipment, etc. ● For the aviation industry. Specifications: ● Suitable plate thickness (inch): 1 ● Back clearance (inch): 0.330 ● Pin diameter (inch): 0.3110-0.3095 ● Shear strength (lBs): 14400 ● Pull-out strength (lBs): 510 ● NAS standard: NAS1335S6C10 MS standard: MSMS17987C510 Material/Finish: ● Body: Stainless steel ● Ball: Stainless steel ● Ring: Stainless steel Note: ● The traceability of this product is managed by the lot number.
