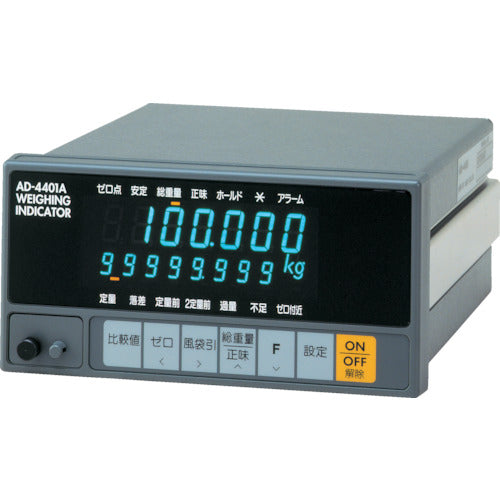

A&D weighing indicator AD4401A AD4401A 1 unit

Catalog number: AD4401A Features: ●Enhanced weighing sequence and communication functions. ●Powerful vibration removal function (high performance filter). ●High speed (100 times/sec) and high accuracy. ●Display is dustproof and waterproof (when panel mounted). ●Easy to build systems with hoppers, check scales, platform scales, etc. ●JIS B7611-2: Compliant (Level H). ●Can be directly connected to CC-Link (CC-Link interface comes standard). ●Simple design focused on connection to a sequencer. Specifications: ●Width x Depth x Height (mm): 144 x 197 x 72●Power supply: AC100-240V (50/60Hz)●Remote sensing function●Maximum number of load cells: Up to eight 350Ω load cells can be connected●Control I/O: 6 inputs and 8 outputs standard●Input sensitivity: 0.3μV/D or more●Zero adjustment range: 0mV to 20mV●Load cell applied voltage: DC10V±5%, 230mA●Temperature coefficient: ±(0.2μV+0.008% of Dead Load)/℃ Typ., span ±8ppm℃ Typ.●Non-linearity: 0.01% of FS
