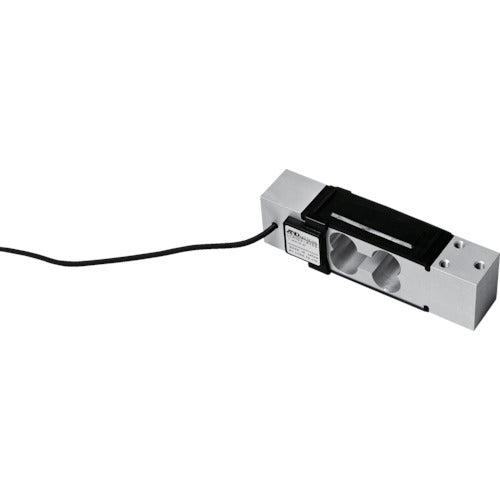

A&D Single point load cell LC4102-K150 LC4102-K150 1 unit

Catalog number: LC4102-K150 Features: ●Load cell for balances and platform scales. ●Small and lightweight, ideal for measuring small weights (four corners adjusted). ●Both zero and span come with temperature guarantee. ●Can be used for both tension and compression. Specifications: ● Rated capacity (kN): 1.5 ● Cable thickness/length: φ4/1.5m ● Area size (mm): 400×400 ● Dustproof/waterproof: IP54 ● Rated output: 1.0197mV/V+15%-0% ● Zero balance: 20±5% of RO ● Recommended applied voltage: DC5-12V, maximum applied voltage: DC15V ● Total error: 0.015% of RO ● Allowable overload: 300% of RC, limit overload: 400% of RC ● Resistance between input terminals: Approximately 400Ω, resistance between output terminals: 350±5Ω ● Insulation resistance: 500MΩ/DC50V ● Temperature compensation range: -10℃ to 40℃ ● Temperature effect of zero point: 0.04% of RO/10℃ ● Temperature effect of output: 0.014% of Load/10℃ Typ. Set contents/accessories: ● Instruction manual
