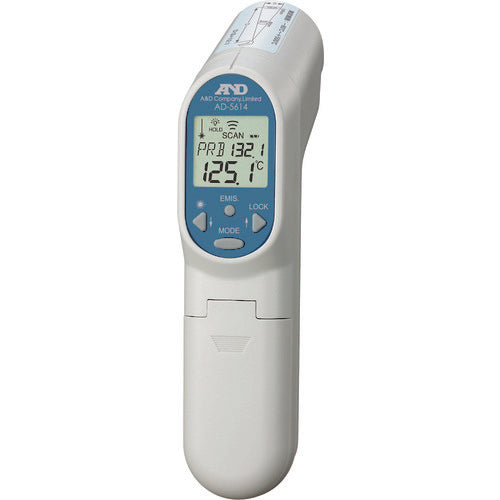

A&D Infrared Thermometer Measurement Temperature Range -60 to 500°C AD5614 1 pc

Catalog number: AD5614 Features: ●Emissivity settings can be changed. ●Optional K-type thermocouple temperature sensors can be used. (AD-1214/1215/1217/1218/1219/1220-100) ●Equipped with upper/lower limit alarm function. ●Maximum, minimum, average temperature, and temperature difference can be displayed. Applications: ●For measuring the temperature of castings and forgings. ●For temperature control in incinerators. ●For measuring the temperature of resin extrusion and molds. ●For temperature control of molten metal. ●For temperature control of hardening, annealing, and tempering. Specifications: ● Measurement temperature range (℃): -60 to 500 ● Minimum temperature display (℃): 0.1/1 ● Width (mm): 39 ● Depth (mm): 72 ● Height (mm): 175 ● Aiming laser: Class 2 (JIS C 6802), laser wavelength 635 to 660 nm, output power 1 mW or less ● Distance to measurement range ratio (D to S): 12 to 1 ● Measurement accuracy (℃): ±2%rdg or ±2℃, whichever is greater (-33 to +500℃) Note that accuracy is not guaranteed for -60 to -34℃ [Radiation thermometer] / ±1%rdg or ±1℃, whichever is greater (Thermocouple temperature sensor's instrument error is not included) [Thermocouple thermometer] ● Power supply (V): 2 AAA batteries (included) ● Power supply: 2 AAA batteries (included) ● Measurement accuracy: ±2% or ±2°C, whichever is greater (-33°C to 500°C) Note that the accuracy is not guaranteed for -60 to -34°C (radiation infrared sensor), ±1% or ±1°C, whichever is greater (thermocouple thermometer body accuracy) ● Emissivity: 0.10 to 1.00 (0.01 steps) ● Width x Depth x Height: 39 x 72 x 175 mm ● Distance to measurement range ratio (D to S): 12 to 1 ● Laser: Class 2 (JIS C6802) C6802) Laser wavelength 635nm to 660nm, output power 1mW or less ● Emissivity (%): 0.10 to 1.00 variable (factory setting 0.95) ● PSC mark certified product
