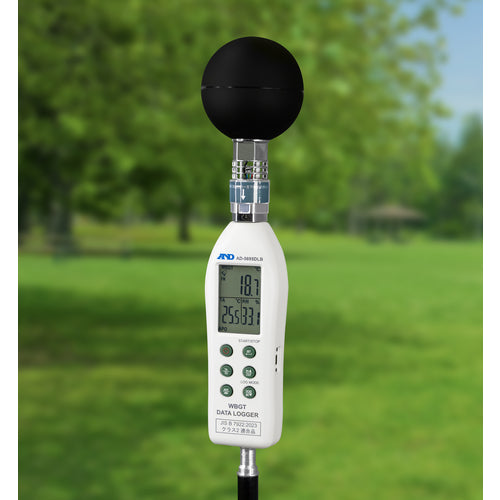

A&D Black Globe Heat Stroke Index Data Logger AD-5695DLB AD-5695DLB 1 unit

Catalog number: AD-5695DLB Features: ●Complies with JIS B 7922:2023 and is Class 2 compliant. Applications: ●For safety management in hot work environments. Specifications: ●Heat stroke index display range (℃): -2 to 52 ●Measurement range Temperature (℃): 0 to 50 ●Measurement range Black globe temperature (℃): 0 to 80 ●Measurement range Humidity (%RH): 10 to 90 ●Minimum display Heat stroke index (℃): 0.1 ●Minimum display Temperature (℃): 0.1 ●Minimum display Humidity (%RH): 0.1●Power supply (V): 4 AAA alkaline batteries●Minimum display heatstroke index (℃): 0.1●Minimum display temperature (℃): 0.1●Minimum display humidity (%RH): 0.1●Measurement temperature range (℃): 0 to 50●Measurement humidity range (%RH): 10 to 90●Minimum humidity display (%RH): 0.1●Color: White, Black●Width (mm): 75●Depth (mm): 75●Height (mm): 301●Display items: Heatstroke index (WBGT), temperature (TA), relative humidity (RH), black globe temperature (TG) ● Measurement items: Temperature (TA), relative humidity (RH), black globe temperature (TG) ● Data recording items: Date, time, IN/OUT settings, temperature, relative humidity, black globe temperature, heat stroke index (WBGT) ● Number of data saved: Maximum 12,000 points (approximately 8 days of measurement data can be recorded with a recording interval of 1 minute) ● Data file save format: CSV format ● Data save destination: Internal memory ● Heat stroke index (WBGT) alarm setting range: 20 to 50°C (can be set in 0.5°C increments), alarm buzzer volume Approximately 80 dB (distance 10 cm) ● Black ball: Ishikawa type black ball (outer diameter Φ75 mm), thickness 0.5 mm, copper, emissivity 0.95 ● JIS B 7922: 2023 compliant (Class 2) Material/Finish: ● Main unit/sensor protection cover: ABS, button: rubber, LCD panel: acrylic, tripod hole: SUS304 Set contents/Accessories: ● Instruction manual, battery (for monitor), protection filter, USB communication cable (A terminal-Mini B terminal), hard case, neck strap, heat stroke prevention guideline label Caution: ● * This product is not a product that can completely prevent the onset of heat stroke. ● * The onset of heat stroke is influenced by various factors such as thermal environment such as temperature, humidity, radiant heat, individual differences such as gender, age, medical history and health condition, and situations such as exercise, work, and daily life activities. Please understand the characteristics of this product well before using it and use it as a guide only. ●※If you feel unwell while using this product, regardless of the indication on the product, please take measures such as moving to a cool place or consulting a doctor. ●※This product may not measure correctly in an environment with a wind speed of less than 0.3 m/s. Caution is required when using in an environment with a light breeze or no wind speed of less than 0.3 m/s. ●※Data recording function settings and recorded data cannot be communicated with a commercially available USB cable for charging only. Be sure to use a USB cable capable of data communication such as the included accessory or a USB cable sold separately.
