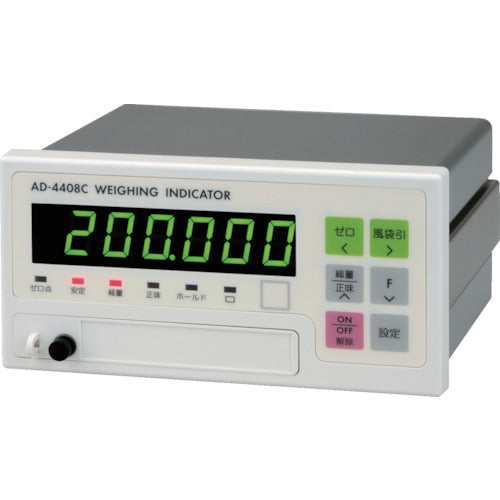

A&D CC-Link Dedicated Weighing Indicator AD4408C AD4408C 1 unit

Catalog number: AD4408C Features: ●Direct connection to CC-Link is possible (CC-Link interface is standard equipment). ●Simple design focused on connection to sequencers. ●High speed (100 times/sec) and high accuracy. ●Lightweight and compact body, ideal for embedding in control panels, etc. ●Display unit is dustproof and waterproof (when panel mounted). ●Up to 42 units can be connected with one master (when configured with AD-4408C only). ●JIS B7611-2: Compliant (Level H). Specifications: ●Display unit dustproof and waterproof (when panel mounted) ●Width (mm): 144 ●Depth (mm): 118.5 ●Height (mm): 72 ●Power supply: AC100-240V (50/60Hz) ●With remote sensing function ●Maximum number of load cells: Up to eight 350Ω load cells can be connected ●CC-Link input/output standard equipment ●Input sensitivity: 0.15μV/D or more ●Zero adjustment range: -35mV to 35mV ●Load cell applied voltage: DC5V±5%, 120mA ●Temperature coefficient: Zero point ±0.02μV/℃ Typ., ±0.1μV/℃ Max., Span ±3ppm/℃ Typ., ±15ppm/℃ Max. ●Non-linearity: 0.005% of FS
