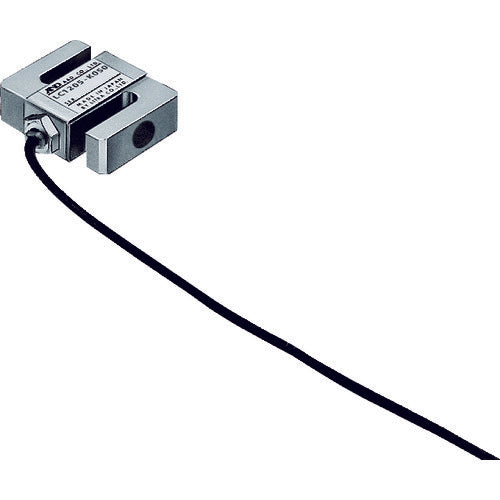

A&D S-type general-purpose load cell LC1205-K050 LC1205-K050 1 unit

Catalog number: LC1205-K050 Features: * Load cell for hoppers and tanks. * Ideal for dynamic weighing with a structure that is not easily affected by eccentric loads. * Can be used for both tension and compression. Specifications: ● Rated capacity (kN): 0.5 ● Cable thickness/length: φ6/3m ● Dustproof/waterproof: IP54 ● Zero balance: ±2% of RO ● Allowable overload: 200% of RC, limit overload: 200% (LC1205-K020/LC1205-K050: 250%) of RC ● Rated output: 2.0394 (LC1205-K020/LC1205-K050: 1.5296) mV/V ±0.5% ● Total error: 0.02% of RO ● Recommended applied voltage: DC5-12V, maximum applied voltage: DC15V ● Resistance between input terminals: Approximately 400Ω, resistance between output terminals: 350±3.5Ω ● Insulation resistance: 5000MΩ/DC50V ● Temperature compensation range: -10℃ to 60℃ ● Temperature effect of zero point: 0.07% of RO/10℃ Output temperature effect: 0.02% of Load/10℃ Set contents/accessories: Instruction manual
