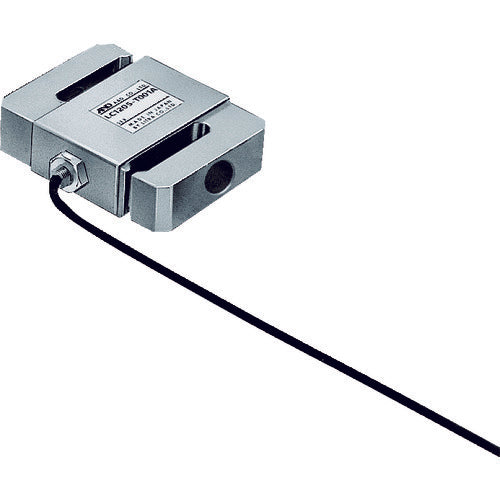

A&D S-type general-purpose load cell LC1205-T001A Rated capacity 10kN LC1205-T001A 1 unit

Catalog number: LC1205-T001A Features: * Load cell for hoppers and tanks. * Ideal for dynamic weighing with a structure that is not easily affected by eccentric loads. * Can be used for both tension and compression. Specifications: ● Rated capacity (kN): 10 ● Resistance between input terminals: Approximately 400Ω, Resistance between output terminals: 350±3.5Ω ● Insulation resistance: 5000MΩ/DC50V ● Rated output: 2.0394mV/V±0.5% ● Allowable overload: 200% of RC, Limit overload: 200% of RC ● Total error: 0.02% of RO ● Zero balance: ±2% of RO ● Recommended applied voltage: DC5-12V, Maximum applied voltage: DC15V ● Temperature compensation range: -10℃ to 60℃ ● Temperature effect of zero point: 0.07% of RO/10℃ ● Temperature effect of output: 0.02% of Load/10℃ ● Cable thickness/length: φ6/3m ● Dustproof/waterproof: IP54 Set contents/accessories: ● Instruction manual
