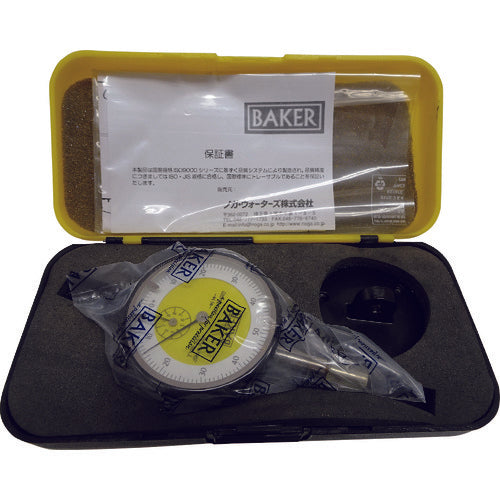

BAKER Standard Dial Gauge Type K01 0.01mm Graduation BGK01 1 pc

Catalog number: BGK01 Features: ●A general dial gauge with a graduation of 0.01 mm. ●The spindle is made of stainless steel, and the measuring point is equipped with a carbide ball anvil. ●It is sturdy due to its strong and smooth metal bezel and brass body. ●At the time of purchase, it comes with a flat back cover and a spare back cover with lugs. ●It comes with an inspection report containing actual measurement data. Applications: ●For precise measurement of parallelism and flatness. Specifications: ●Measuring range (mm): 0-10 ●Minimum display (mm): 0.01 ●Scale specifications: 0-50-0 ●Mounting shaft diameter (mm): 8 ●Measuring force (N): 1.5 or less ●Dial diameter (mm): 56
