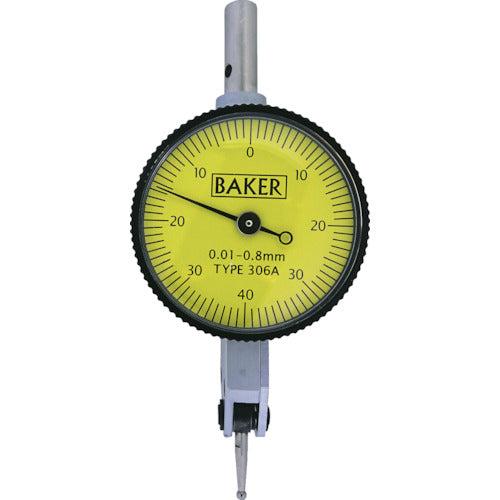

BAKER Standard Test Indicator Type 306 with φ6 spigot BG306A 1 piece

Catalogue number: BG306A Features: ●A general no-clutch type with no switching lever. ●Uses jewelry bearing stones and Swiss precision bearings for smooth operation. ●The body is made of sturdy brass and the bezel is made of aluminum. ●Comes with an inspection report containing actual measurement data. ●BG302 and BG306 come with full accessories. Applications: ●For precise measurement of parallelism and flatness. Specifications: ●Measuring range (mm): 0.8 ●Minimum display (mm): 0.01 ●Scale specifications: 0-40-0 ●Mounting shaft diameter (mm): 6 ●Measuring force (N): 0.35 or less ●Dial diameter (mm): 38
