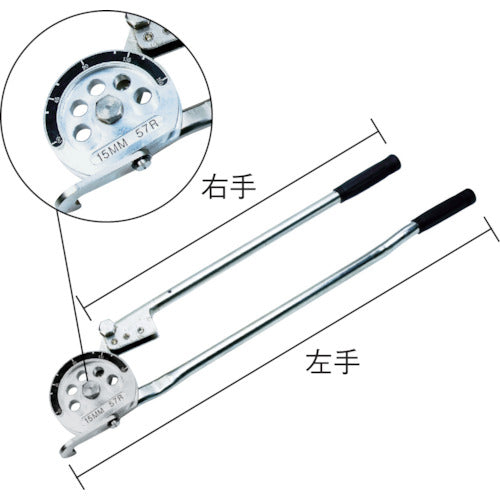

Catalog number: 3364-M-16 Features: ●Deep groove bending wheel allows for small changes in tube thickness and small bending radius. ●Rollers are installed in the shoe section, so bending angles can be accurately processed without using more force than necessary. ●Compact, lightweight, and sturdy body. Applications: ●Copper, brass, aluminum tubes, etc. Specifications: ●Type: For millimeters ●Compatible tube diameter (mm): 16 ●Bending radius R (mm): 57.1 ●Total length (mm): 720 ●Dimensions (mm) left hand: 720 ●Dimensions (mm) right hand: 510 ●Bendable wall thickness (mm) soft copper tube: 1.0 ●Bending angle (°): 0 to 180 ●Compatible tube diameter: 16 ●Large type ●For millimeter sizes
