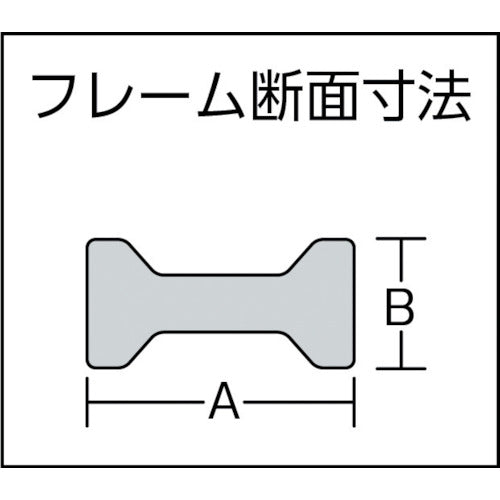

Catalogue number: SG60M Features: ● Comes with an adjustable angle cap, so it can be replaced. ● When the opening is 150 mm, the maximum tightening pressure is 12 kN. (SG-30T20M, SG-60T20M are 8.5 kN) ● For heavy objects such as steel, construction, and shipbuilding. ● Comes with an adjustable angle cap, so it can be replaced. When the opening is 150 mm, the maximum tightening pressure is 1200 kgf. Specifications: ● Total length (mm): 730 ● Maximum opening (mm): 600 ● Depth (mm): 140 ● Frame dimension (mm) A: 34 ● Frame dimension (mm) B: 13 ● Rail: 34 x 13 mm Material/Finish: ● Carbon tool steel
