BESSEY Clamp STB-M Type Opening 1000mm STB100M 1 piece

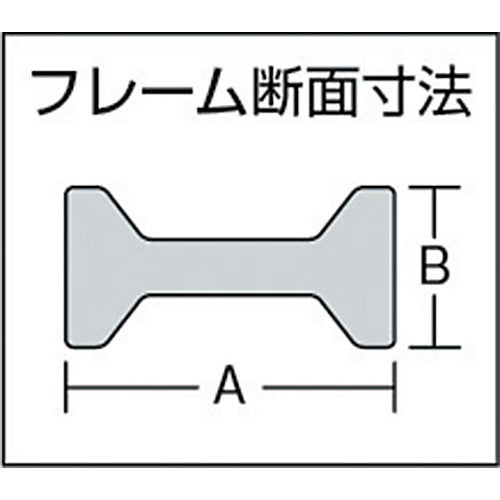

Catalogue number: STB100M Features: ● Comes with an adjustable angle cap, so it can be replaced. ● A speed clamp made of all steel with special heat treatment, for heavy ironwork. ● The wear-resistant spindle with adjustable angle cap is hexagonal and can be tightened using tools such as impact wrenches and spanners. ● Maximum tightening pressure is 22kN when the opening is 150mm. Applications: ● For heavy steel, construction, shipbuilding, etc. ● For heavy ironwork. Specifications: ● Total length (mm): 1150 ● Maximum opening (mm): 1000 ● Depth (mm): 175 ● Frame dimension (mm) A: 40 ● Frame dimension (mm) B: 20 ​​● Rail: 40 x 20mm Material/Finish: ● Carbon tool steel
