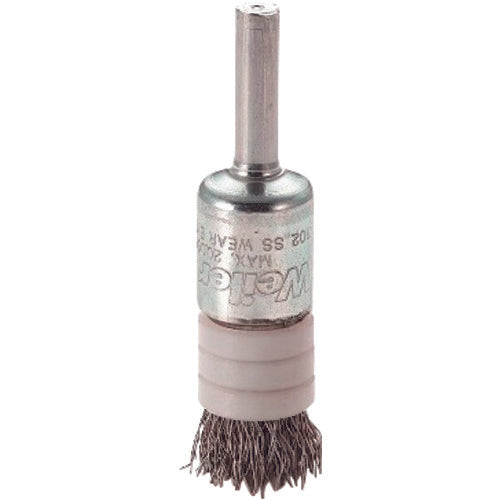

BURRTEC Crimped shaft end brush with RING, outer diameter 29, SUS, EBR-22SUS, 3753500, 1 piece

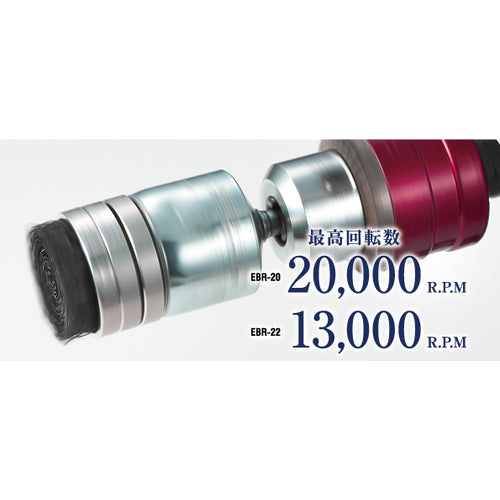

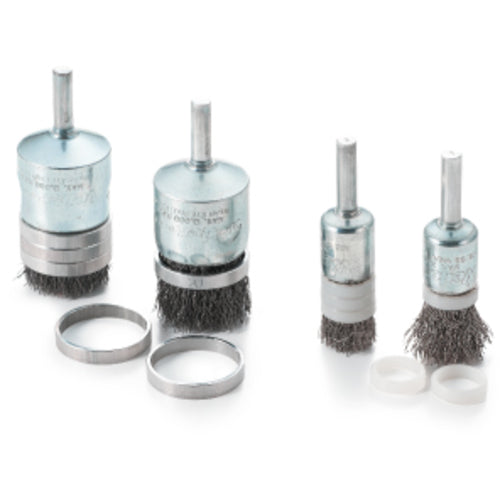

Catalog number: 3753500 Features: ●The tip of the filament does not spread, so the workpiece can be processed with pinpoint precision. ●The maximum rotation speed is set based on the US national standard (ANSI) after conducting destructive tests. ●The ring prevents the bristles from spreading even when rotating. ●When worn, simply remove the ring to return to new condition. ●The "fixed ring structure" prevents the brush filament from spreading. The bristles are uniformly distributed and securely fixed, so the brush rotates smoothly even under harsh conditions and lasts a long time. ●The bristles do not spread, so pinpoint processing is possible and robot teaching is possible. ●The burden on the brush filament is reduced, so it is safe. ●Product compliant with RoHS Directive (2011/65/EU), RoHS Directive ((EU)2015/863) Applications: ●For carbon removal and polishing maintenance of turbine fins. ●For engine overhaul work. ●For polishing corners after welding. Specifications: ● Wire diameter (mm): 0.3 ● Bristle material: Stainless steel ● Outer diameter (mm): 29 ● Bristle length (mm): 22 ● Shaft length (mm): 18 ● Shaft diameter (mm): 6 ● Maximum operating speed (rpm): 13000 ● Total length (mm): 66 ● Compatible tools: Straight grinder, drill, automatic machine Material/Finish: ● SUS: Stainless steel wire (brush material) Caution: ● Please select the type of machine and the type of power brush that are appropriate for the intended use (purpose). Using a model other than the compatible model or using it for purposes other than its intended use may lead to accidents and is dangerous. Do not use for purposes other than its intended use. ● Check the maximum allowable rotation speed (circumferential speed) printed on the package, label, catalog, and other related documents, and use within the allowable range. Never use it beyond this. ● When operating the power brush, be sure to wear a brush protective cover, gloves, a safety helmet, dust-proof tight-fitting protective glasses, and a mask for safe work. ● Generally, when using a power brush, burrs, scale, dirt, slag, etc. are thrown out with considerable force along with the filament (broken wire), so keep anything that is easily flammable, explosive, or damaged away from the area. Also, wear clothing that covers your skin so that the grinding dust does not come into direct contact with your hands and feet. ● If the wire brush filament (broken wire) or grinding dust scatters, it can be dangerous, so people in the vicinity of the work site (within 15m of the brush) should also wear protective glasses and clothing while working. (As a consideration for people in the vicinity other than the worker, install curtains, or instruct people to keep out or block off the area.)
