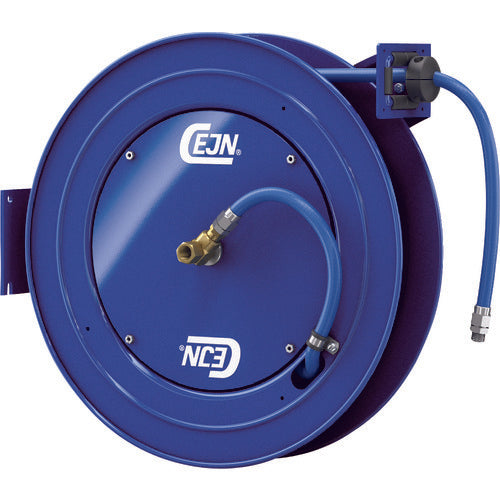

CEJN Open Safety Reel 18m 9.5 x 13.5mm PUR Hose 19-911-3141 1 piece

Catalog number: 19-911-3141 Features: ●The winding control function gently winds up the hose, preventing danger caused by the hose swinging around. ●Robust and durable steel body design. ●Can accommodate long, large-diameter hoses. Applications: ●For work requiring high-output air, such as in large maintenance workshops and large vehicle assembly. Specifications: ● Hose inner diameter x outer diameter (mm): 9.5 x 13.5 ● Total hose length (m): 18 ● Primary mounting: Rc3/8 ● Secondary mounting: R3/8 ● Primary hose length (m): 0 ● Secondary hose length (m): 18 ● Maximum operating pressure (MPa): 1.6 ● Width (mm): 495 ● Depth (mm): 210 ● Height (mm): 540 ● Outer diameter (mm): 13.5 ● Inner diameter (mm): 9.5 ● Color: Blue ● Hose material: Polyurethane ● Fluid used: Air ● Automatic rewinding type ● Ratchet type stopper ● Operating temperature range: -20 to 60°C Materials/Finish: ● Reel body: Steel (powder coated) ● Hose: Braided polyurethane
