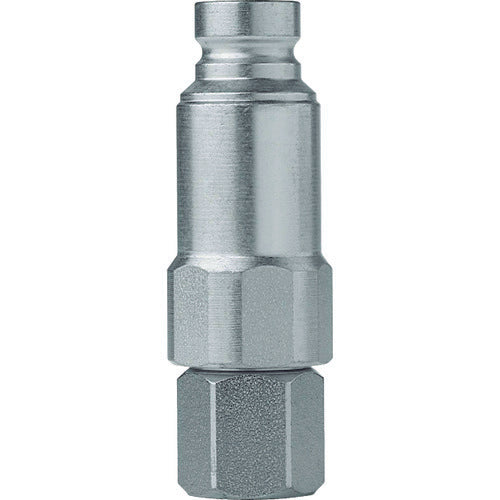

CEJN Series 064 Nipple with residual pressure relief function Rc1 1/4 Female thread 10-064-6104 1 pc

Catalog number: 10-064-6104 Features: ●Flat face design prevents oil leakage and air ingress when connecting and disconnecting. ●Can be connected under pressure (built-in residual pressure removal mechanism). Applications: ●For circuits where environmental pollution due to dripping, contamination, and air ingress are a concern. Specifications: ●Pressure resistance (MPa): 35 ●Mating mounting size: R1 1/4 male thread ●Fluid used: Hydraulic oil ●Maximum operating pressure (MPa): 35 ●Operating pressure: 35 ●Nominal diameter (mm): 25 ●Minimum burst pressure (MPa): 120 ●Operating temperature range: -30 to 100°C ●ISO 16028 standard Material/Finish: ●Body: Steel ●Seal rubber: Nitrile rubber (NBR)/PUR Set contents/Accessories: ●Comes with protective cap for connecting screw Caution: ●Do not separate under pressure.
