セインジャパン(株)

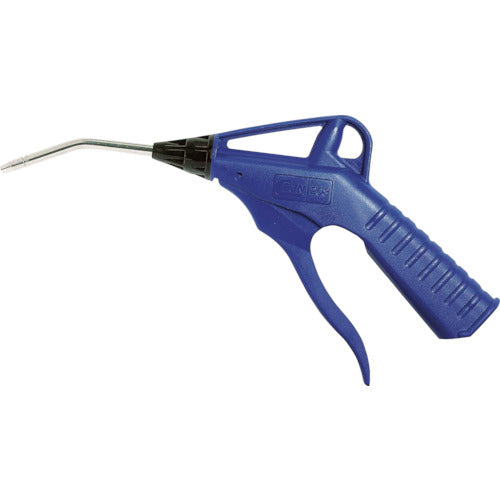

CEJN Series 208 Air Fluid Gun with 90mm Detachable Nozzle NPT1/4 11-208-0250 1pc
CEJN Series 208 Air Fluid Gun with 90mm Detachable Nozzle NPT1/4 11-208-0250 1pc
Regular price
¥2,207
Regular price
Sale price
¥2,207
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Catalog number: 11-208-0250 Features: ●Ergonomic design allows for comfortable operation. ●Large flow rate allows for effective work. ●Lightweight and easy to handle, with easy flow rate adjustment using the lever. Applications: ●For cleaning, drying, cooling, draining, and cleaning machine tools using air blowing. Specifications: ●Nozzle length (mm): 74 ●Nozzle diameter (mm): 3.5 ●Nozzle mounting port: M14×1 ●Air mounting port: NPT1/4 ●Total length (mm): 254 ●Operating temperature range (℃): −20 to 60 ●Air flow rate (L/min): 500 ●Maximum operating pressure (MPa): 1.6 ●Operating fluid: Air, non-flammable liquid ●Nozzle replaceable Material/Finish: ●Body: Polyacetal (POM) Caution: ●Do not allow contamination to enter from the air mounting port side.
