CEJN Series 210 Multi-Flow Air Fluid Gun Adjustable Fluid G1/2 Brass 11-210-0355 1 pc

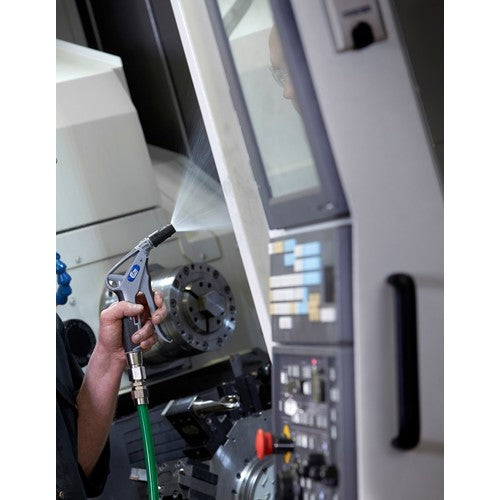

Catalog number: 11-210-0355 Features: ● The valve built into the nozzle prevents dripping. ● In addition to operating the lever, the maximum flow rate can be adjusted using the dial on the main unit. ● The ergonomic rubber grip makes it non-slip and provides a firm grip for comfortable operation. ● The nozzle edge is made of plastic so it will not damage the surface of the target object. ● The spray angle can be adjusted from a focused jet to a wide angle for cleaning a wide area. Applications: ● Cleaning the inside of machine tools. ● For cleaning machine tools, etc. Specifications: ●Spray shape: Straight/wide ●Nozzle outer diameter (mm): 20 ●Oil supply port: G1/2 female thread ●Operating pressure (MPa): 1.6 ●Total length (mm): 249.8 ●Compatible fluids: Cutting oil, water ●Operating fluid: Non-flammable liquids ●Operating temperature range (℃): -20 to 60 ●Fluid flow rate (L/min): 3.5 to 15 ●Nozzle length: 49.5 ●Nozzle mounting port: M14 x 1 ●Air mounting port: G1/2 female thread ●Nozzle replaceable Material/Finish: ●Body: Polyacetal (POM) ●Oil supply port: Brass Caution: ●Make sure that no contamination enters from the oil supply port side.
