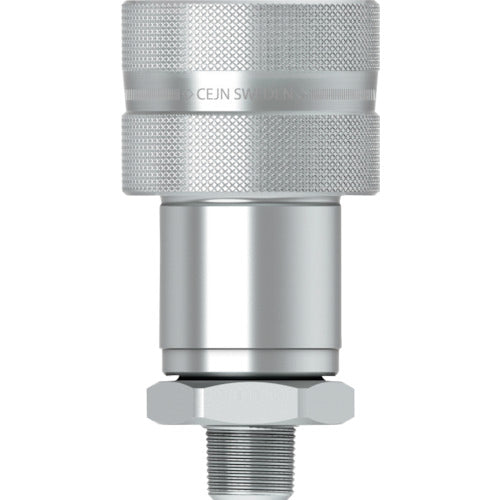

CEJN Series 232 Screw Type Coupling Nominal Size 6.3mm NPT1/4 Male Thread 10-232-1452 1 pc

Catalog number: 10-232-1452 Features: ●Can be connected under pressure. ●High flow rate, high durability. Applications: ●Hand pumps, cylinders, jacks, etc. Specifications: ●Maximum operating pressure (MPa): 72 ●Matching side mounting size: NPT1/4 female thread ●Nominal diameter (ND): 6.3mm ●Fluid used: Hydraulic oil ●Minimum burst pressure (when connected) (MPa): 216 ●Minimum burst pressure (when coupling is separated) (MPa): 180 ●Minimum burst pressure (when nipple is separated) (MPa): 149 ●Flow rate: 16.1L/min ●Hexagonal face (mm): 21 ●Length (mm): 60.4 ●Outer diameter (mm): 29 ●Operating temperature range: -30 to 100°C ●Screw type ●ISO 14540 standard Material/Finish: ●Body: Steel (plated) ●Seal rubber: Nitrile rubber (NBR) Note: ●Dust caps are sold separately. ●Compatible with products that meet ISO 14540 standards. ●Please use nipples with the same nominal diameter (6.3 mm).
