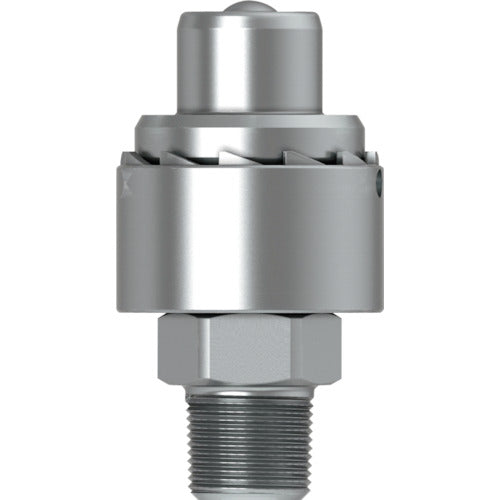

CEJN Series 232 Screw Type Nipple with Teeth Lock Nominal Size 6.3mm NPT1/4 Male Thread 10-232-6492 1 pc

Catalog number: 10-232-6492 Features: ●Can be connected under pressure. ●High flow rate and high durability. ●The teeth lock function increases durability against vibration, minimizing the risk of downtime due to unexpected loosening of the screws. Applications: ●Hand pumps, cylinders, jacks, etc. Specifications: ● Maximum operating pressure (MPa): 72 ● Counterpart mounting size: NPT1/4 female thread ● Nominal diameter (ND): 6.3mm ● Fluid used: Hydraulic oil ● Minimum burst pressure (when connected) (MPa): 216 ● Minimum burst pressure (when coupling is separated) (MPa): 180 ● Minimum burst pressure (when nipple is separated) (MPa): 149 ● Hexagonal side (mm): 18 ● Length (mm): 54.2 ● Outer diameter (mm): 29 ● Operating temperature range: -30 to 100°C ● Screw type ● ISO 14540 standard ● With teeth lock ● Flow rate: 16.1L/min Material/Finish: ● Body: Steel (plated) ● Sealing rubber: Nitrile rubber (NBR) Note: ● Dust caps are sold separately. ● Compatible with products that comply with the ISO 14540 standard. ● Please use couplings with the same nominal diameter (6.3mm).
