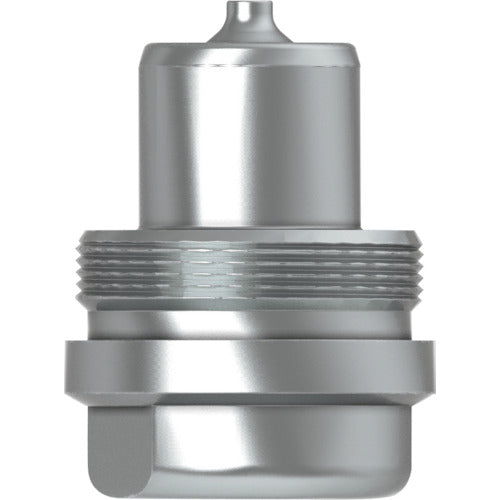

CEJN Series 232 Screw Type Nipple with Poppet Valve Nominal Size 10mm NPT3/8 Female Thread 10-232-6444 1 pc

Catalog number: 10-232-6444 Features: ●Can be connected under pressure. ●Large flow rate, high durability. ●Comes with a poppet valve that has a larger flow rate than the standard type. Applications: ●Hand pumps, cylinders, jacks, etc. Specifications: ●Maximum operating pressure (MPa): 72 ●Matching side mounting size: NPT3/8 male thread ●Nominal diameter (ND): 10mm ●Fluid used: Hydraulic oil ●Minimum burst pressure (when connected) (MPa): 216 ●Minimum burst pressure (when coupling is separated) (MPa): 185 ●Minimum burst pressure (when nipple is separated) (MPa): 150 ●Flow rate (L/min): 35 ●Hexagonal face size (mm): 24 ●Operating temperature range: -30 to 100°C ●Screw type ●ISO 14540 standard ●Comes with poppet valve Material/Finish: ●Body: Steel (plated) ●Seal rubber: Nitrile rubber (NBR) Note: ●Dust caps are sold separately. ●Compatible with products that comply with ISO 14540 standards. ●Please use couplings with the same nominal diameter (10 mm).
