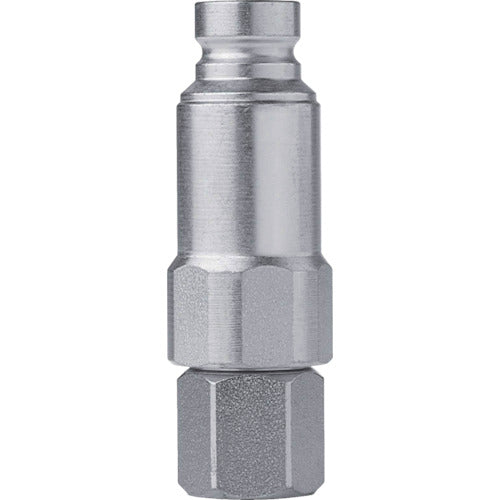

CEJN Series 264 Nipple with residual pressure relief function NPT1/4 Female thread 10-264-6402 1 pc

Catalog number: 10-264-6402 Features: ●Flat face design prevents oil leakage and air ingress when connecting and disconnecting. ●Can be connected under pressure (built-in residual pressure removal mechanism). Applications: ●For circuits where environmental pollution due to dripping, contamination, and air ingress are a concern. Specifications: ●Matching size: NPT1/4 male thread ●Fluid used: Hydraulic oil ●Maximum operating pressure (MPa): 50 ●Nominal diameter (mm): 6.3 ●Minimum burst pressure (MPa): 150 ●Operating temperature range: -30 to 100°C ●ISO 16028 standard Material/Finish: ●Body: Steel ●Seal rubber: Nitrile rubber (NBR), urethane resin Set contents/Accessories: ●Comes with protective cap for connection screw Caution: ●Do not separate under pressure.
