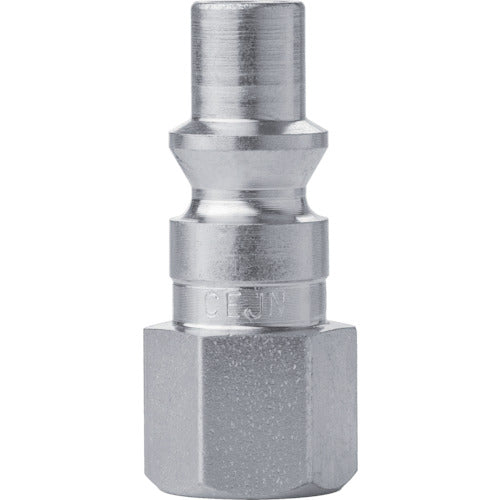

CEJN Series 300 Nipple Female Thread NPT3/8 10-300-5404 1 pc

Catalog number: 10-300-5404 Applications: ● Air piping for pneumatic tools, pneumatic equipment, and factories ● For air piping for pneumatic tools, pneumatic equipment, and factories. Specifications: ● Fluid used: Air ● Operating temperature range (℃): -20 to 100 ● Maximum operating pressure (MPa): 1.6 ● Counterpart mounting size: NPT3/8 male thread ● Nominal diameter (mm): 5.5 ● Minimum burst pressure (MPa): 14 ● Operating temperature: -20℃ to 100℃ ● Air flow rate: 1050L/min (inlet pressure 0.6MPa, pressure loss 0.05MPa, measured value when using the company's coupling) Material/Finish: ● Body: Steel ● Nipple material: Hardened steel (zinc plated) Note: ● Can be connected to ARO 210 standard 5.5mm including series 300.
