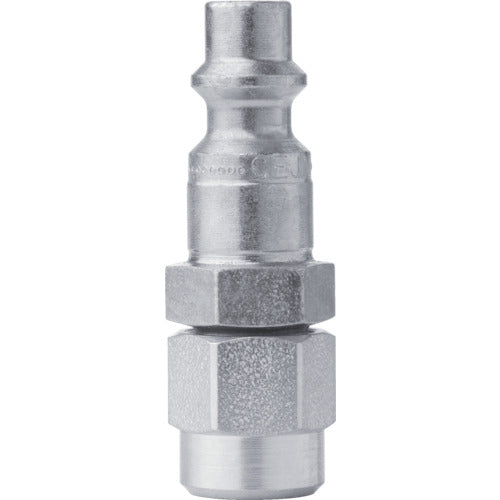

CEJN Series 310 Nipple Streamline Connection 16 x 11 mm 10-310-5066 1 pc

Catalog number: 10-310-5066 Applications: ● Air piping for pneumatic tools, pneumatic equipment, and factories ● For air piping for pneumatic tools, pneumatic equipment, and factories. Specifications: ● Mating hose size (mm): 11.0 x 16.0 ● Fluid: Air ● Operating temperature range (℃): -20 to 100 ● Maximum operating pressure (MPa): 1.6 ● Nominal diameter (mm): 5.3 ● Minimum burst pressure (MPa): 14 ● Operating temperature: -20 to 100℃ ● Air flow rate: 950L/min (inlet pressure 0.6MPa, pressure loss 0.05MPa, measured value when using couplings from the same company) Material/Finish: ● Body: Steel ● Nipple material: Hardened steel (zinc plated) Note: ● Can be connected to ISO 6150 B, AA 59439, 5.3mm standards including Series 310.
