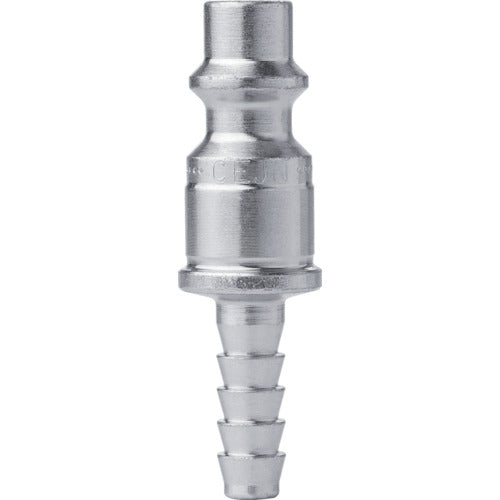

CEJN Series 310 Nipple Hose Connection 5/16 10-310-5003 1 pc

Catalog number: 10-310-5003 Applications: ● Air piping for pneumatic tools, pneumatic equipment, and factories ● For air piping for pneumatic tools, pneumatic equipment, and factories. Specifications: ● Pressure resistance (MPa): 1.6 ● Mating hose size (inch): 5/16 ● Fluid used: Air ● Maximum operating pressure (MPa): 1.6 ● Operating temperature range (℃): -20 to 100 ● Operating pressure: 1.6MPa ● Nominal diameter (mm): 5.3 ● Minimum burst pressure (MPa): 14 ● Operating temperature: -20 to 100℃ ● Air flow rate: 950L/min (inlet pressure 0.6MPa, pressure loss 0.05MPa, measured value when using couplings from the same company) Material/Finish: ● Body: Steel ● Nipple material: Hardened steel (zinc plated) Note: ● Can be connected to ISO 6150 B, AA 59439, 5.3mm standards including Series 310.
