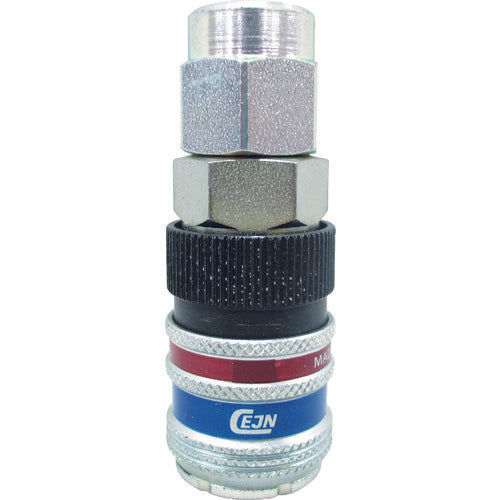

Catalog number: 10-315-2090 Features: ● Lock ring prevents unexpected separation. ● Large flow rate and low pressure loss design contributes to energy saving and work efficiency. ● Easy operation with one touch when connecting and automatic removal of residual pressure by simply pulling the sleeve when disconnecting. ● Safe residual pressure removal function prevents accidents caused by hose recoil when disconnecting. ● Energy consumption can be reduced by up to 30%. Applications: ● Ideal for applications where large impacts and vibrations are applied, or where there is a risk of unexpected separation. Specifications: ●Matching hose size (mm): 6.5 x 10.0 ●Fluid used: Air ●Maximum operating pressure (MPa): 1.6 ●Nominal diameter (ND): 7.5 mm ●Minimum burst pressure (MPa): 14.0 ●Air flow rate: 1950 L/min (measured value when inlet pressure is 0.6 MPa and pressure loss is 0.05 MPa) ●Operating temperature range: -20 to 100°C ●With residual pressure removal function Material/Finish: ●Body: Steel ●Sealing rubber: Nitrile rubber (NBR) Note: ●Compatible with general domestic products.
