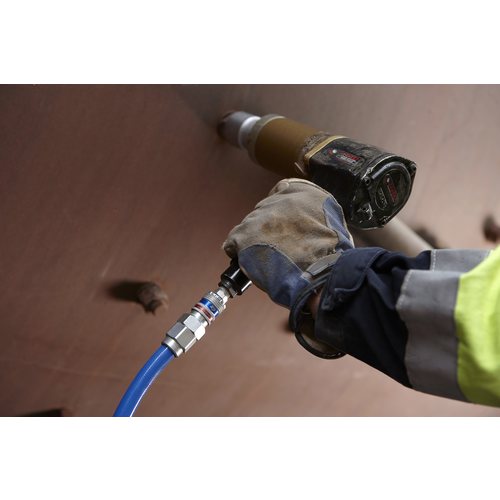

Catalog number: 10-315-2244 Features: ● Lock ring prevents unexpected separation. ● Large flow rate and low pressure loss design contributes to energy saving and work efficiency. ● Easy operation with one touch when connecting and automatic removal of residual pressure by simply pulling the sleeve when disconnecting. ● Safe residual pressure removal function prevents accidents caused by hose recoil when disconnecting. ● Energy consumption can be reduced by up to 30%. ● Compatible with general domestic products. Applications: ● Ideal for applications where large impacts and vibrations are applied, or where there is a risk of unexpected separation. Specifications: ● Counterpart mounting size: G3/8 male thread ● Fluid used: Air ● Maximum operating pressure (MPa): 1.6 ● Minimum burst pressure (MPa): 14.0 ● Nominal diameter (ND): 7.5mm ● Connection thread: G3/8 female thread ● Air flow rate: 1950L/min (Measured value when inlet pressure is 0.6MPa and pressure loss is 0.05MPa) ● Maximum operating pressure: 1.6MPa ● Operating temperature range: -20 to 100°C ● With residual pressure removal function Material/Finish: ● Body: Steel ● Sealing rubber: Nitrile rubber (NBR) Note: ● Compatible with general domestic products.
