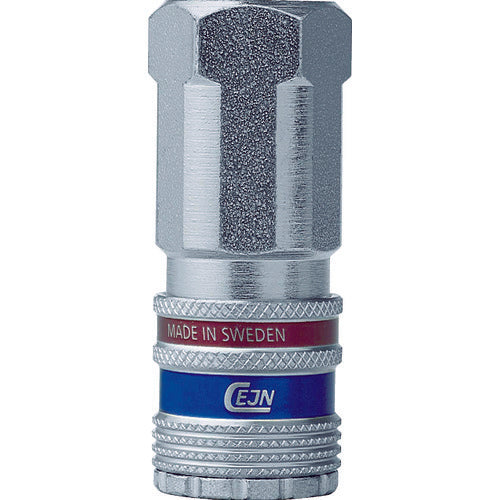

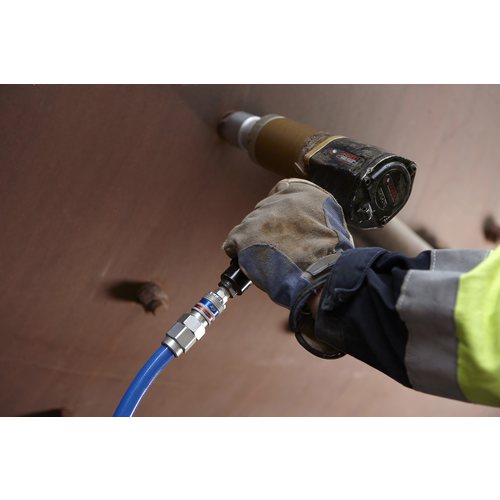

Catalog number: 10-320-2202 Features: ●Safe residual pressure removal function prevents accidents caused by hose recoil when disconnected. Large flow rate and low pressure loss design contributes to energy saving and work efficiency. ●Easy operation that can automatically remove residual pressure by simply pulling the sleeve when disconnecting and one-touch connection. Specifications: ●Fluid used: Air ●Maximum operating pressure (MPa): 1.6 ●Matching side mounting size: G1/4 male thread ●Minimum burst pressure (Mpa): 14.0 ●Operating temperature range: -20 to 100°C ●Nominal diameter (mm): 7.6 ●Air flow rate: 2250L/min (measured value when inlet pressure is 0.6MPa and pressure loss is 0.05MPa) ●With residual pressure removal function Material/Finish: ●Body: Steel ●Seal rubber: Nitrile rubber (NBR) Note: ●Can be connected to European standard 7.4mm including series 320.
