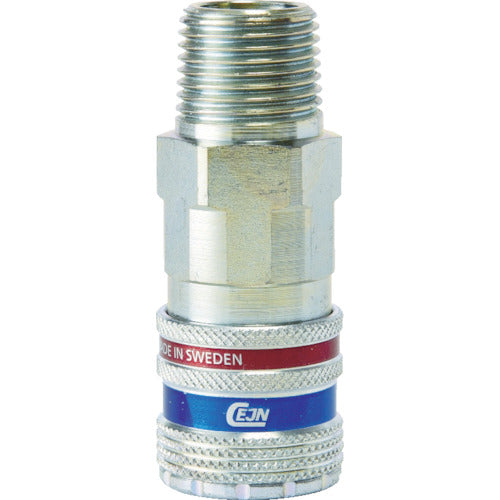

Catalog number: 10-410-2154 Features: ●Safe residual pressure removal function prevents accidents caused by hose recoil when disconnected. ●Large flow rate and low pressure loss design contributes to energy saving and work efficiency. ●Easy operation with one touch when connecting and automatic residual pressure removal by simply pulling the sleeve when disconnecting. Specifications: ●Pressure resistance (MPa): 1.6 ●Mating side mounting size: Rc3/8 ●Fluid used: Air ●Maximum operating pressure (MPa): 1.6 ●Operating pressure: 1.6MPa ●Minimum burst pressure (Mpa): 14.0 ●Operating temperature range: -20 to 100°C ●Nominal diameter: 10.4mm ●Air flow rate: 4000L/min (measured value when inlet pressure is 0.6MPa and pressure loss is 0.05MPa) ●With residual pressure removal function Material/Finish: ●Body: Steel ●Seal rubber: Nitrile rubber (NBR) Note: ●Can be connected to European standard 10.4mm including series 410.
