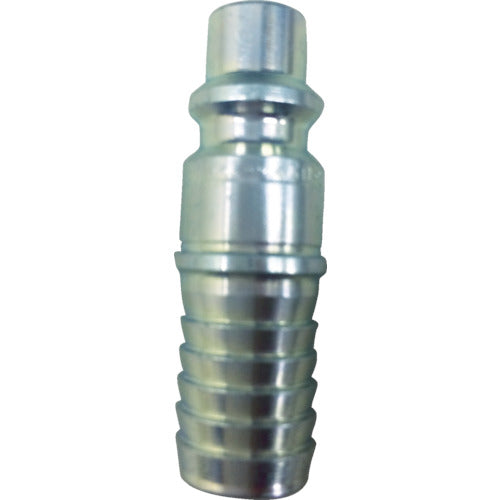

CEJN Series 430 eSafe Nipple Hose Connection 1/4 10-430-5002 1 pc

Catalog number: 10-430-5002 Applications: ● Air piping for pneumatic tools, pneumatic equipment, and factories ● For air piping for pneumatic tools, pneumatic equipment, and factories. Specifications: ● Fluid used: Air ● Operating temperature range (℃): -20 to 100 ● Maximum operating pressure (MPa): 1.6 ● Mating hose size (inch): 1/4 ● Nominal diameter (mm): 8.2 ● Minimum burst pressure (MPa): 14.0 ● Operating temperature: -20 to 100℃ ● Air flow rate: 2500L/min (inlet pressure 0.6MPa, pressure loss 0.05MPa, measured value when using the same company's coupling) Material/Finish: ● Body: Steel ● Nipple material: Hardened steel (zinc plated) Note: ● Can be connected to ISO6150B, A-A59439, and 8.2mm standards including Series 430.
