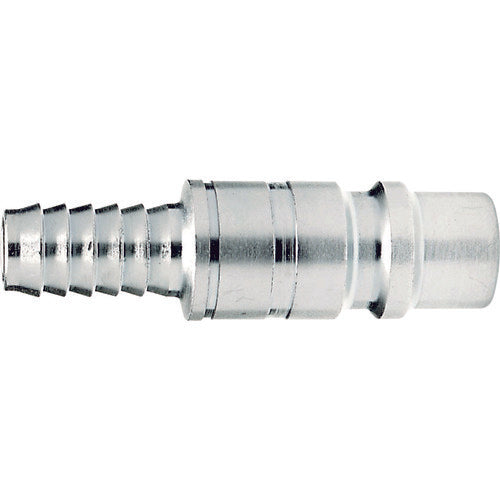

CEJN Series 550 Nipple Hose Connection 3/8 10-550-5004 1 pc

Catalog number: 10-550-5004 Features: ●Large diameter type. Applications: ●Large air tools, large diameter hoses, primary air piping in factories ●For large air tools, large diameter hoses, and primary air piping in factories. Specifications: ● Pressure resistance (MPa): 1.6MPa ● Mating hose size (inch): 3/8 ● Fluid used: Air ● Maximum operating pressure (MPa): 1.6 ● Operating temperature range (℃): -20 to 100 ● Operating pressure: 1.6MPa ● Nominal diameter (mm): 11 ● Minimum burst pressure (MPa): 14.0 ● Operating temperature: -20 to 100℃ ● Air flow rate: 4050L/min (inlet pressure 0.6MPa, pressure loss 0.05MPa, measured values ​​when using the company's coupling) Material/Finish: ● Body: Steel ● Nipple material: Hardened steel (zinc plated) Note: ● Can be connected to ISO 6150 B, AA-59439, 11mm including Series 550.
