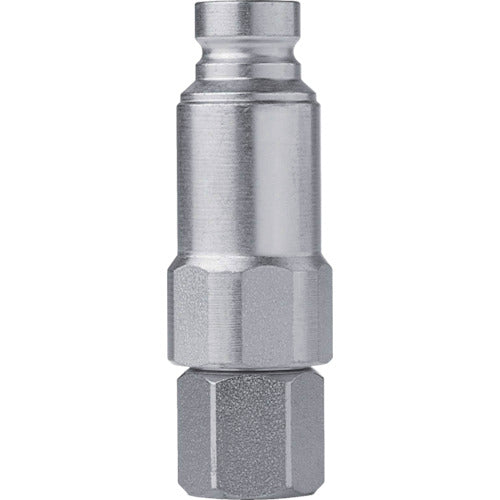

CEJN Series 564 Nipple with residual pressure relief function G1/2 JIS ORB Female thread 10-564-6295 1 pc

Catalog number: 10-564-6295 Features: ●Flat face design prevents oil leakage and air ingress when connecting and disconnecting. ●Can be connected under pressure (built-in residual pressure removal mechanism). Applications: ●For circuits where environmental pollution due to dripping, contamination, and air ingress are a concern. Specifications: ●Pressure resistance (MPa): 40 ●Mating side mounting size: G1/2 JIS ORB male thread ●Fluid used: Hydraulic oil ●Maximum operating pressure (MPa): 40 ●Operating pressure: 40 ●Nominal diameter (mm): 12.5 ●Minimum burst pressure (MPa): 120 ●Operating temperature range: -30 to 100°C ●ISO 16028 standard Material/Finish: ●Body: Steel ●Seal rubber: Nitrile rubber (NBR), urethane resin Set contents/Accessories: ●Comes with protective cap for connection screw Caution: ●Do not separate under pressure.
