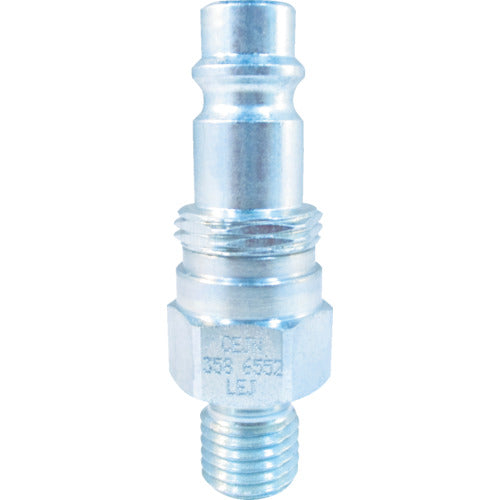

CEJN Snap Check/358 One-touch pressure inspection nipple with valve M14 x 1.5 male thread 10-358-6554 1 piece

Catalogue number: 10-358-6554 Features: ●Can be connected under pressure of up to 30 MPa. ●Comes with a plastic dust cap. ●One-touch connection. ●Compact design. Applications: ●For monitoring and pressure inspection of vehicle hydraulics and hydraulic circuits of injection molding machines. Specifications: ●Pressure resistance (MPa): 60 ●Mating side mounting size: M14 x 1.5 female thread ●Usable fluid: hydraulic oil ●Maximum operating pressure (MPa): 60 ●Usable temperature range (℃): -30 to 100 ●Usable pressure: 60 ●Hexagonal face size (mm): 20 ●Sealing method: Rubber metal seal ●Inner diameter (mm): 20 ●Color: Silver Material/Finish: ●Body: Steel
