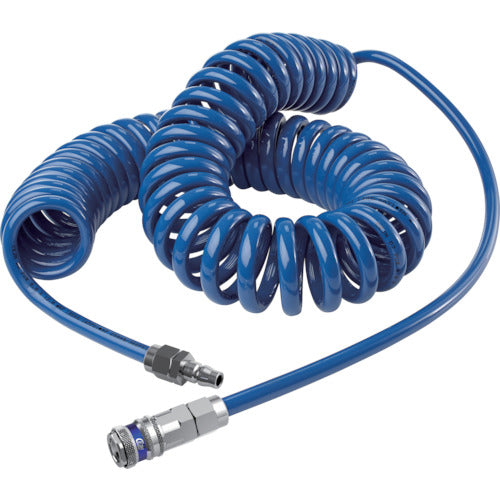

CEJN Spiral Hose Kit Series 315 with Coupling 8 x 12 6M 19-958-9420 1 pc

Catalog number: 19-958-9420 Features: ● Comes with a coupling that allows one-touch connection at a large flow rate. ● Polyurethane hose with excellent durability and flexibility. ● Already assembled, so it can be used immediately. Applications: ● For pneumatic tools and air work in maintenance shops, paint shops, and general production factories. Specifications: ● Coil diameter (mm): 65 ● Color: Blue ● Hose inner diameter x outer diameter (mm): 8 x 12 ● Usage range (m): 6 ● Total length (mm): 1100 ● Coil length (mm): 500 ● Outer diameter (mm): 12 ● Inner diameter (mm): 8 ● Fluid used: Air ● Fluid temperature (℃): -20 to 60℃ ● Operating pressure: 1.0MPa ● With couplings on both ends ● Connection joint: Coupling / nipple (series 315) Material / Finish: ● Hose: Ester-based polyurethane ● Coupling: Steel Note: ● Compatible with general domestic products.
