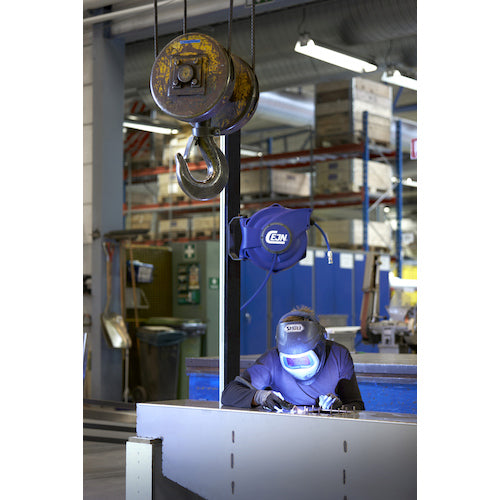

Catalog number: 19-911-2150 Features: ●The winding control function gently winds up the hose, preventing danger caused by the hose being unruly. ●The hose guide winds up the hose evenly, preventing the hose from bending when stored. ●The hose can be easily replaced without disassembly. ●Easy installation with one touch, making installation and maintenance easy. ●The patented large flow design contributes to improved work efficiency. ●CE marking in accordance with 2006/42/EC. ●The safe residual pressure removal function prevents accidents caused by hose recoil when separated (only with eSafe coupling). ●The connection fittings (primary side/secondary side) are compatible with general domestic products. Applications: ●For air work in automobile repair shops, paint shops, and general production factories. Specifications: ● Hose inner diameter x outer diameter (mm): 13.0 x 18.0 ● Total hose length (m): 8 ● Primary mounting side: R1/2 ● Secondary mounting side: R1/2 ● Maximum operating pressure (MPa): 1.0 ● Operating pressure (MPa): 1.0 ● Width (mm): 490 ● Depth (mm): 190 ● Height (mm): 409 ● Outer diameter (mm): 18.0 ● Inner diameter (mm): 13.0 ● Color: Blue ● Total length (m): 8 ● Connection fitting: R1/2 ● Fluid used: Air ● Operating temperature range (℃): -20 to 60 ● Automatic retraction type ● Ratchet type stopper ● Hose color: Blue Materials/Finish: ● Main body cover: Plastic ● Hose: Braided polyurethane
