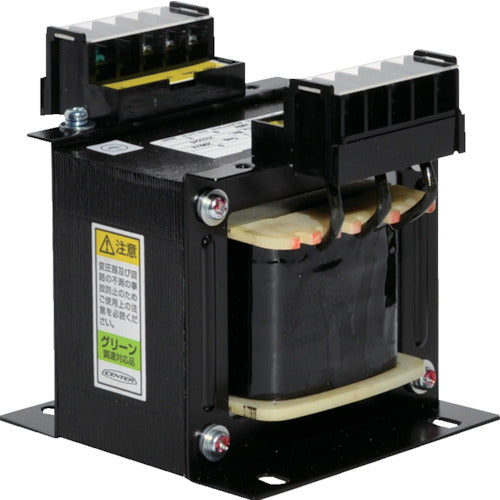

CENTER Transformer Double-wound ECL21-200N ECL21-200N 1 unit

Catalog number: ECL21-200N Features: ●Compliant with JIS standards. ●Compact and lightweight. Applications: ●Transformers for control panels, etc. Specifications: ●Input voltage (V): 220-200 ●Output voltage (V): 110-100 ●Maximum current (A): 1.82 ●Capacity (VA): 200 ●Width (mm): 96 ●Depth (mm): 115 ●Height (mm): 107 ●Secondary current (A): 1.82 ●1φ dry transformer isolation transformer ●P.1φ2W 220‐200V ●S.1φ2W 110‐100V ●Capacity 200VA Secondary current 1.82A
