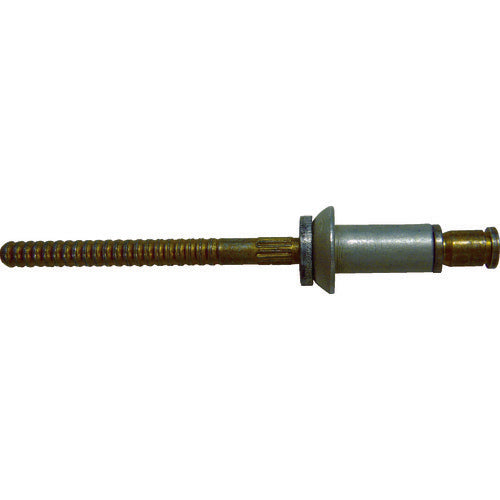

Cherry Max Rivet Universal Head/No. t0.063 to 0.125 inch CR3223-4-02 100 pieces

Catalog number: CR3223-4-02 Features: ●A highly reliable blind rivet that can be used as a replacement for solid rivets. Applications: ●Aerospace equipment, etc. Specifications: ●Shear load (N): 505 ●Tensile load (N): 285 ●Flange thickness (inch): 0.063-0.125 ●Rivet length (inch): 0.224 ●Flange diameter (inch): 0.250 ●Rivet diameter (inch): 1/8 ●Pilot hole diameter (inch): 0.129-0.132 ●Nominal diameter ●NAS standard: NAS9301E-4-02 Material/Finish: ●Sleeve (rivet part): Aluminum ●Stem (shaft): Stainless steel Note: ●The traceability of this product is managed by the lot number.
