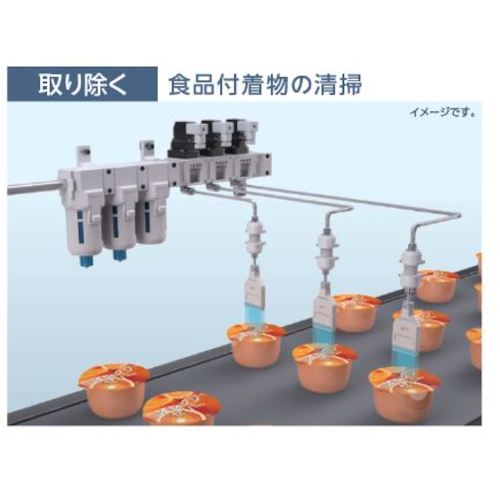

Catalog number: SFS10-H12H12-FP2 Features: ● Small sterilizing filter developed for food manufacturing processes. ● Ideal for circuits that blow directly onto food. ● Provides sterilized, clean air. ● Bacteria capture performance LRV≧8. Applications: ● Ideal for sterilizing air blown directly onto food, etc. ● Can be installed close to the point of use. Specifications: ● Filtration accuracy (μm): 0.01 ● Operating pressure (MPa): -0.095 to 0.99 ● Processed air flow rate (［［M3］］/min): 0.38 ● Connection port size: φ12 one-touch ● Overall length (mm): 118 ● Overall width (mm): 40 ● Fluid used: Compressed air, nitrogen gas (N2), carbon dioxide gas (CO2) ● Fluid temperature (℃): 5 to 45
