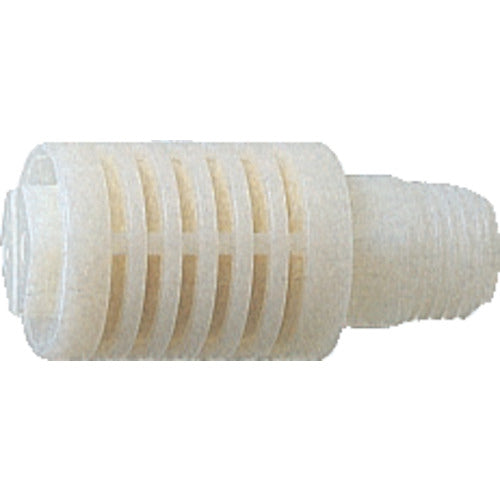

CKD Silencer Resin Body Type SLW-8A 1 pc

Catalog number: SLW-8A Features: ●A device that reduces exhaust noise generated by exhaust air. ●Compact, resin body type with a noise reduction effect of 30 dB or more. Applications: ●To reduce the noise of exhaust air from the exhaust port of a directional control valve. Specifications: ● Sound reduction (dB): 30 or more ● Effective cross-sectional area (mm2): 20 ● Connection diameter: R1/4 ● Overall length (mm): 44.5 ● Operating pressure (MPa): 0 to 1.0 ● Operating temperature (℃): -10 to 60 (but do not freeze) ● Fluid used: Compressed air ● Width (mm): 20 ● Fluid temperature (℃): 5 to 60 ● Ambient temperature (℃): -10 to 60 ● Fluid used: Compressed air ● Sound reduction effect: 30dB or more ● Flow rate: 1300L/min (ANR) (effective cross-sectional area: 20mm2) ● Applicable cylinder tube inner diameter: φ32 to 80mm (reference) Material/Finish: ● Body: Polyamide resin (flame-retardant resin) *Equivalent to UL94 standard VO ● Element: PP sintered resin Caution: ● The fluid temperature and ambient temperature must not freeze. Depending on the air quality (dew point), there is a risk of freezing due to adiabatic expansion. ●The flow rate is an atmospheric pressure equivalent value at a pressure of 0.5 MPa.
