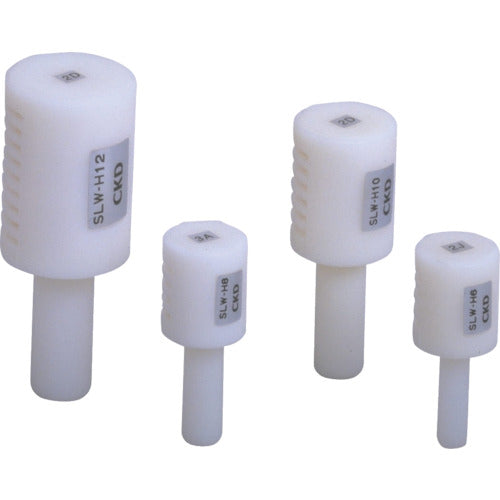

CKD Silencer Resin Body Type SLW-H8 1 pc

Catalog number: SLW-H8 Features: ●A device that reduces exhaust noise generated by exhaust air. ●Compact type with a noise reduction effect of 20 dB or more. Applications: ●For silencing exhaust air from the exhaust port of a directional control valve. Specifications: ● Sound reduction (dB): 20 or more ● Effective cross-sectional area (mm2): 8.5 ● Connection diameter (mm): φ8 one-watch fitting ● Connection diameter: φ8 one-watch fitting ● Overall length (mm): 42 ● Operating pressure (MPa): 0 to 0.7 ● Operating temperature (℃): -10 to 60 (but do not freeze) ● Fluid used: Compressed air ● Width (mm): 16 ● Fluid temperature (℃): 5 to 60 ● Ambient temperature (℃): -10 to 60 ● Fluid used: Compressed air ● Fluid temperature: 5 to 60℃ (but do not freeze) ● Operating pressure: 0 to 0.7MPa ● Flow rate: 455L/min (ANR) (effective cross-sectional area: 7mm2) ● Applicable cylinder tube inner diameter: φ20 to 40mm (reference) Material/Finish: ● Body: Polyamide resin ● Element: Felt Note: ● The fluid temperature and ambient temperature must not freeze, but depending on the air quality (dew point), there is a risk of freezing due to adiabatic expansion. ● The flow rate is the atmospheric pressure converted value at a pressure of 0.5 MPa.
