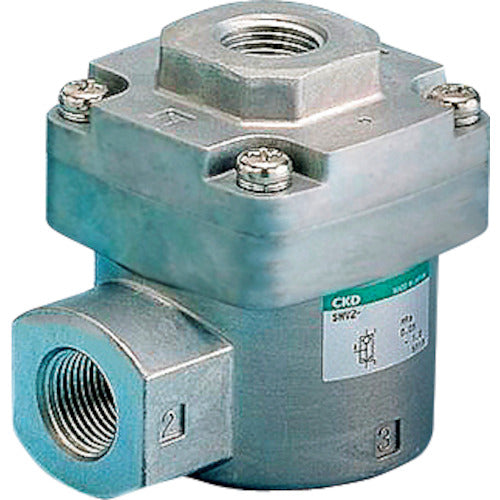

CKD Shuttle Valve SHV2-15 1 piece

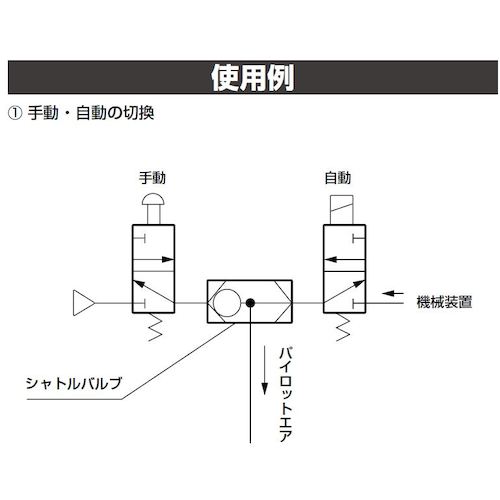

Catalog number: SHV2-15 Features: ●A wide variety of connection diameters (series from Rc1/8 to Rc2). ●Fluororubber specifications (standard is nitrile rubber) are available as an option. ●An environmentally friendly product. Lead-free, hexavalent chromium-free, and paint-free, making separation and disposal easy. Uses: ● When constructing an OR circuit with an air circuit Specifications: ● Effective cross-sectional area (mm2): Port position 1 → 2: 105, Port position 3 → 2: 115 ● Connection diameter: Rc1/2 ● Operating pressure (MPa): 0.05-1.0 ● Fluid used: Compressed air ● Minimum required flow rate (L/min): 100 ● Width (mm): 53 ● Depth (mm): 67 ● Height (mm): 63 ● Fluid temperature (℃): 5-60 ● Fluid used: Compressed air ● Minimum operating pressure: 0.05MPa ● Minimum operating differential pressure: 0.05MPa ● Maximum operating pressure: 1.0MPa ● Pressure resistance: 1.5MPa ● Fluid temperature: 5-60℃ ● Ambient temperature: 0-60℃ (but not frozen) ● Installation position: Free ● If the flow rate is below the minimum required flow rate, the valve may not switch completely. Material/Finish: ● Body: Aluminum die-cast ● O-ring: Nitrile rubber
