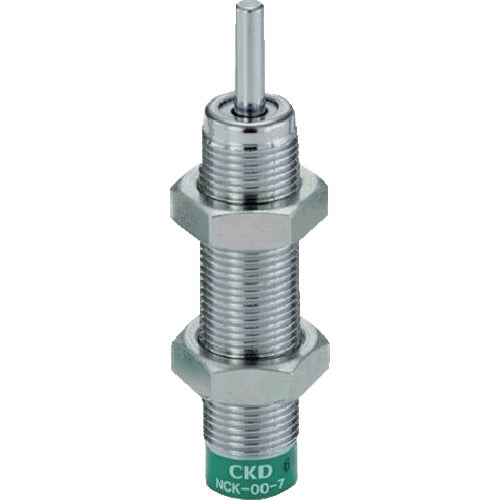

CKD Shock Killer Basic Type NCK-00-0.1 1 pc

Catalog number: NCK-00-0.1 Features: ●This shock absorber is ideal for stopping workpieces with thrust at low and medium speeds. ●Even though it is compact, it has a large absorbed energy and is highly space-efficient. ●Installation is simple. ●The slit orifice method, which was previously considered difficult to use, has been adopted for the structure, achieving high absorption capacity at low speeds and linear soft stopping. Applications: ●For use as a shock absorber when stopping workpieces. Specifications: ●Stroke (mm): 4.5 ●Impact speed (m/s): 1.0 ●Thread size: M8 x 0.75 ●Type: Basic type ●Maximum absorbed energy (J): 1 ●Ambient temperature -10 to 80°C ●Maximum impact speed 1.0 m/s Caution: ●The shock killer's absorption capacity changes depending on the speed and ambient temperature.
